TinyTapeout is a simplified way to get your digital designs onto silicon. If you have Verilog ready to go, you can submit it for manufacture in a few hours.

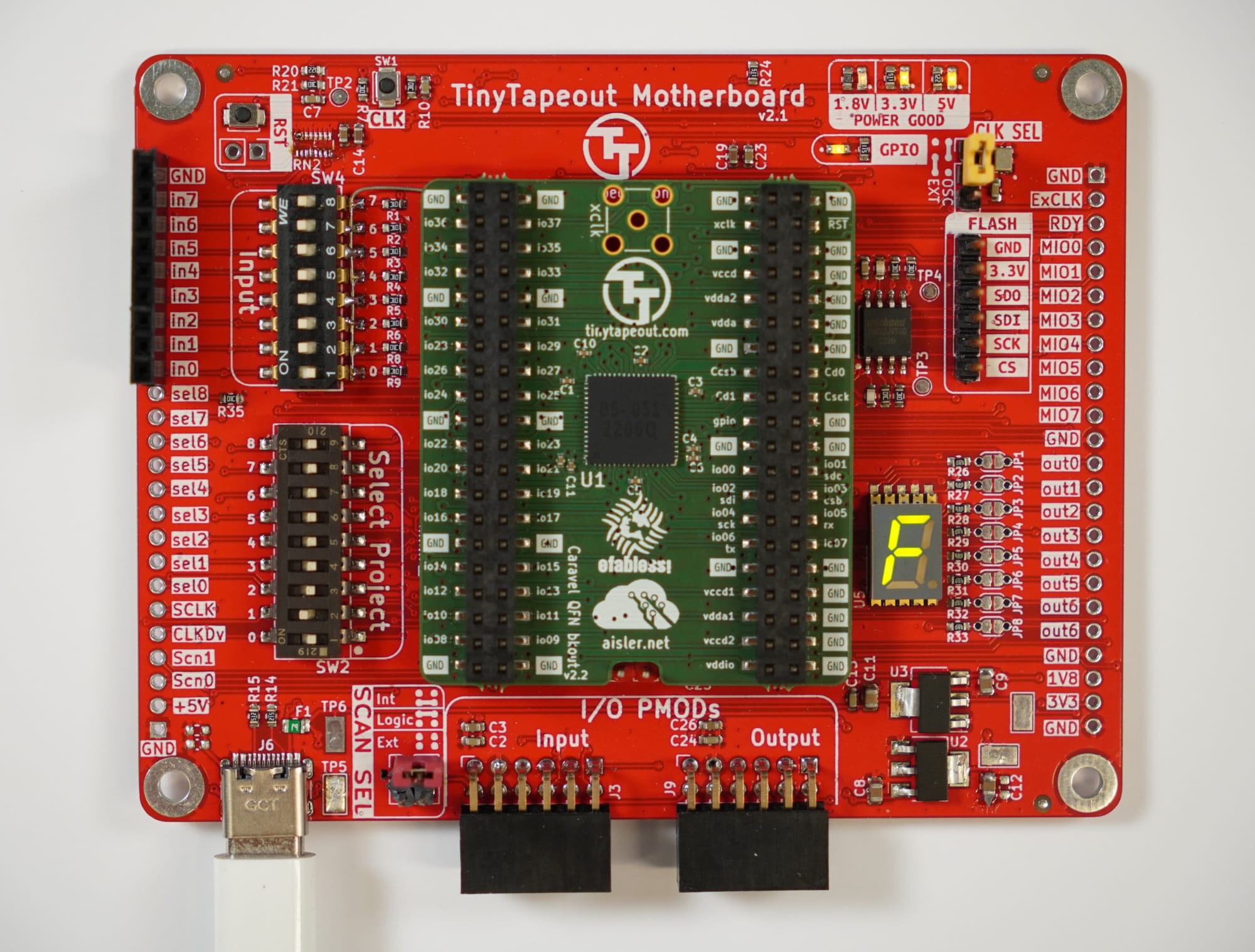

By splitting a single chipIgnite slot into 384 pieces, we can lower the cost of entry to $100 for one chip mounted onto an evaluation board (excluding taxes) .

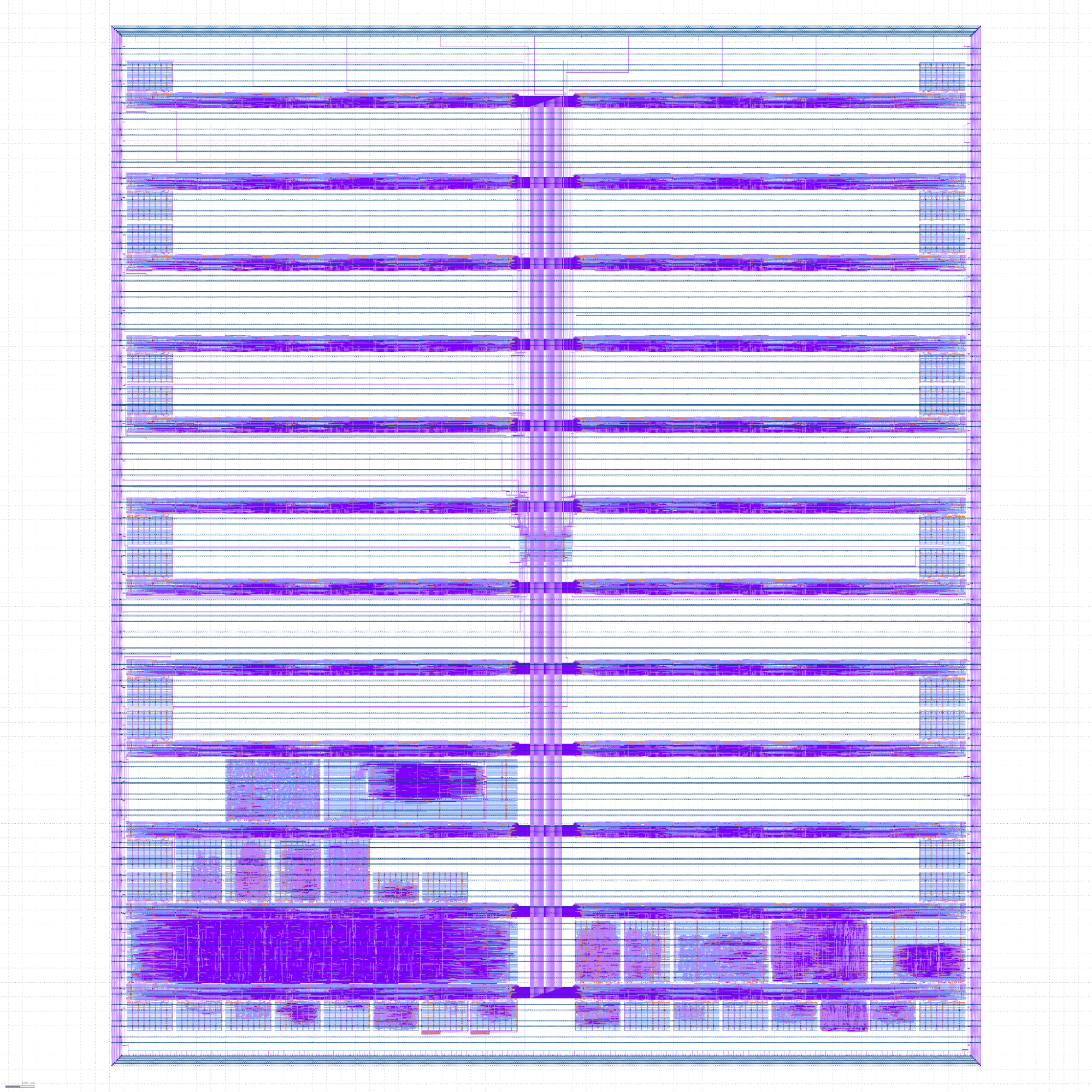

Larger designs can be accommodated by buying extra tiles for $50. Each tile is about 160 x 100um and provides enough space for around 1000 standard cells.

Designs get clock, reset and 24 IOs operating at up to 50MHz. Find out more about the specifications here.

There have been 4 submissions so far. The most recent run was Tiny Tapeout 04 which includes 143 projects. Designs include CPUs, FPGAs, games and music. A variety of HDLs were used including Verilog, Spinal and Spade.

• VGA ray caster game
• Chiptune vintage 8 bit sound generator
• PWM peripheral
• String synthesiser with I2S out
• USB fullspeed device
• Tiny Breakout
• Tiny processor
• Grain-Flex-FPGA
• AI decelerator
• Simple as Possible CPU
• Multi channel pulse counter
• Simple Piano
• Pong
• FM transmitter
• ROT FPGA
• LED sequencer
• Clock synchronizer
• Randomizer and status checker
