KZOA0352IP

Summary

KZOA0352IP
community
Khaled Zaki Ahmed Hussein
Hard IP
350nm
community
X-FAB
EFXH035A
Operational Amplifier

Licensing

$10000
$0

Maturity

layout
2

Library Package

1.0
May 23, 2018

Certifications

icon Community Certified
Add To Library Create OG Demo Send Inquiry

Description

A unique operational amplifier IP for ADC applications that achieves very high bandwidth, very high full power bandwidth and very high precision.  In addition, it has very low power consumption and chip area.

Features

  • Very high bandwidth
  • Very low offset
  • Very high CMRR
  • Fast slew rate
  • Low power consumption

Figure(s)

Pins

NAME DESCRIPTION TYPE DIRECTION VMIN VMAX
pve differential input voltage high signal input -0.3 3.6
nve differential input voltage low signal input -0.3 3.6
output bandgap reference voltage output signal output -0.3 3.6
POWER positive power supply power inout -0.3 3.6
VSSA ground ground inout -0.3 POWER + 0.3

Parameters

Global Conditions

NAME MINIMUM TYPICAL MAXIMUM UNITS
VDD 2.5 V
Ground 0 V
RLoad 100 GΩ
CLoad 5 pF
Temp -40 27 130 °C
Vcm 0.8 1.5 V
Trise 50 ms
Sigma 3
Corner ws tm wp

Electrical Parameters

PARAMETER PIN MINIMUM TYPICAL MAXIMUM UNITS
Input Offset Voltage -95.23 -43.73 -0.232 mV Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VCM 0.8 1.5 V
VOLTAGE:VDDA 2.5 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 3
VOL 0.02815 0.0368 0.04593 V Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VCM 0.8 1.5 V
VOLTAGE:VDDA 2.5 V
VOLTAGE:VDIFF -1 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 3
VOH 2.491 2.497 2.5 V Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VCM 0.8 1.5 V
VOLTAGE:VDDA 2.5 V
VOLTAGE:VDIFF 1 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 3
Open-loop Voltage Gain 228.2 231.6 234.8 dB Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VDDA 2.5 V
VOLTAGE:VCM 1.0 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 3
Gain-Bandwidth @ 3σ 513.5 647.4 788.5 MHz Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VDDA 2.5 V
VOLTAGE:VCM 1.0 V
VOLTAGE:VDIFF 0.1 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 3
Gain-Bandwidth @ 6σ 391.8 648 912 MHz Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VDDA 2.5 V
VOLTAGE:VCM 1.0 V
VOLTAGE:VDIFF 0.1 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 6
Slew Rate Rise @ 3σ 1179 1726 2273 V/µs Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VCM 0.8 1.5 V
VOLTAGE:VDDA 2.5 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 3
Slew Rate Rise @ 6σ 808.4 1940 3072 V/µs Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VCM 0.8 1.5 V
VOLTAGE:VDDA 2.5 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 6
Slew Rate Fall @ 3σ 524.8 558.8 592.8 V/µs Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VCM 0.8 1.5 V
VOLTAGE:VDDA 2.5 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 3
Slew Rate Fall @ 6σ 312.4 526.3 741.8 V/µs Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VCM 0.8 1.5 V
VOLTAGE:VDDA 2.5 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 6
Full Power Bandwidth 66.82 71.15 75.47 MHz Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VCM 0.8 1.5 V
VOLTAGE:VDDA 2.5 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 3
Phase Margin 96.84 211.7 271.4 ° Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VDDA 2.5 V
VOLTAGE:VCM 1.0 V
VOLTAGE:VDIFF 0.1 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 3
Gain Margin -90.97 -88.23 -85.56 dB Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VDDA 2.5 V
VOLTAGE:VCM 1.0 V
VOLTAGE:VDIFF 0.1 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
CORNER ws tm wp
SIGMA 3
Equivalent Input Noise Voltage @ 1kHz 24.05 113.8 522.4 nV/√Hz Conditions
VOLTAGE:VDDA 2.5 V
VOLTAGE:VSSA 0 V
VOLTAGE:VCM 0.8 1.5 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE -40 27 130 °C
FREQUENCY 1 kHz
CORNER ws tm wp
SIGMA 3
Equivalent Input Noise Voltage @ 10kHz 20.62 41.93 160.4 nV/√Hz Conditions
VOLTAGE:VDDA 2.5 V
VOLTAGE:VSSA 0 V
VOLTAGE:VCM 0.8 1.5 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE -40 27 130 °C
FREQUENCY 10 kHz
CORNER ws tm wp
SIGMA 3
CMRR @ 100kHz -45 -42.24 -39.2 dB Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VDDA 2.5 V
VOLTAGE:VCM 0.8 1.5 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
FREQUENCY:VCM 100 kHz
CORNER ws tm wp
SIGMA 3
PSRR @ 100kHz -120.5 -67.89 -29.22 dB Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VDDA 2.3 3.3 V
VOLTAGE:VCM 0.8 1.5 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
FREQUENCY:POWER 100 kHz
CORNER ws tm wp
SIGMA 3
IDD @ 3σ 125.4 161.1 200.1 µA Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VCM 0.8 1.5 V
VOLTAGE:VDDA 2.5 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
FREQUENCY:VDIFF 1 kHz
CORNER ws tm wp
SIGMA 3
IDD @ 6σ 99.82 167.1 245 µA Conditions
VOLTAGE:VSSA 0 V
VOLTAGE:VCM 0.8 1.5 V
VOLTAGE:VDDA 2.5 V
RISETIME:VDIFF 50 ms
RESISTANCE:OUTPUT 100 GΩ
CAPACITANCE:OUTPUT 5 pF
TEMPERATURE 27 °C
FREQUENCY:VDIFF 1 kHz
CORNER ws tm wp
SIGMA 6

Physical Parameters

PARAMETER MINIMUM TYPICAL MAXIMUM UNITS
device_area 5130 µm²
area 13311.67 µm²
width 97.45 µm
height 136.6 µm
DRC_errors 0
LVS_errors 0

Performance Characteristics

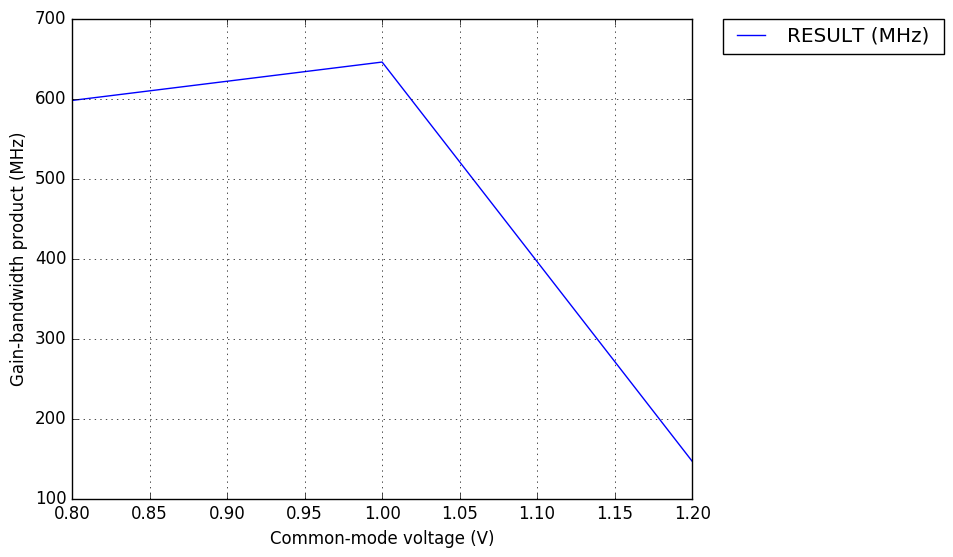

Gain-bandwidth product vs. Common-mode voltage

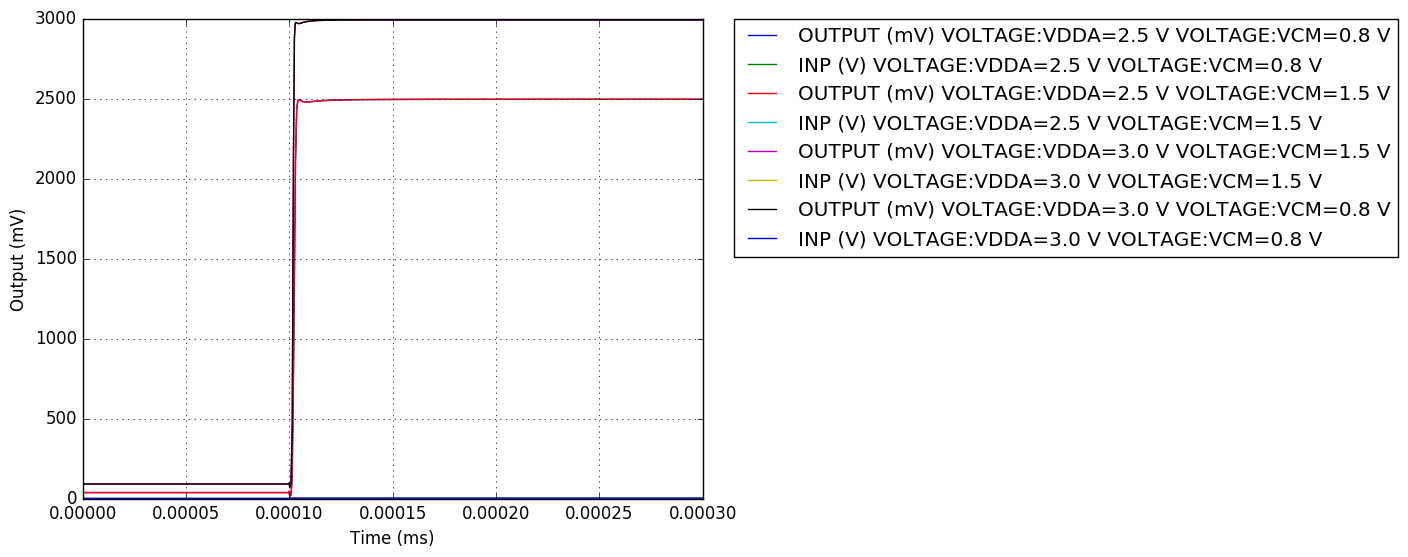

Large signal transient response (Unity gain configuration, 2Vpp

Slew rate vs. supply voltage POWER

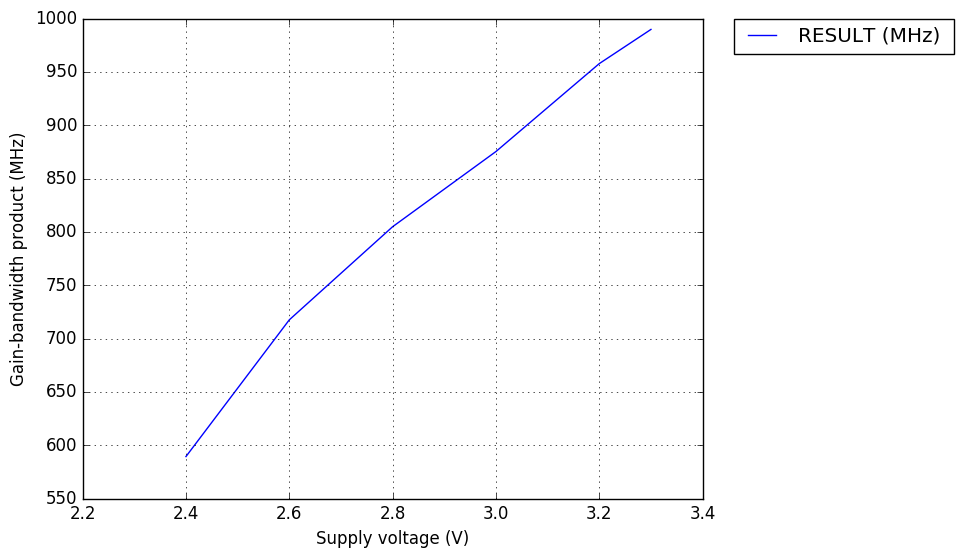

Gain-bandwidth product vs. Supply voltage
